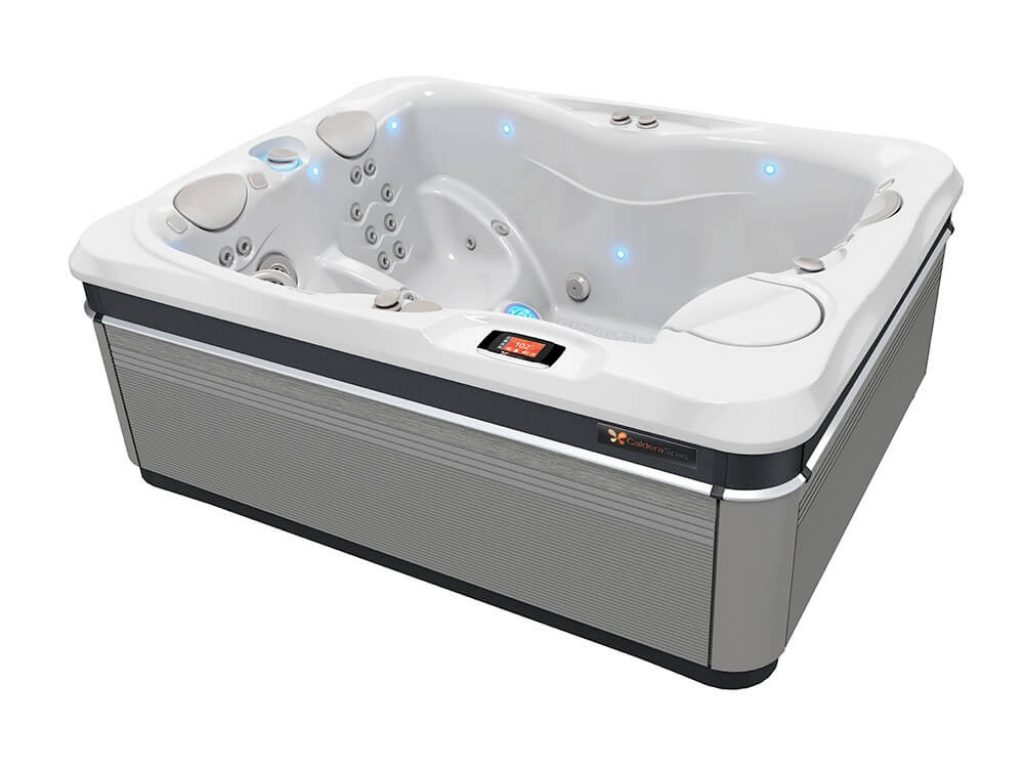

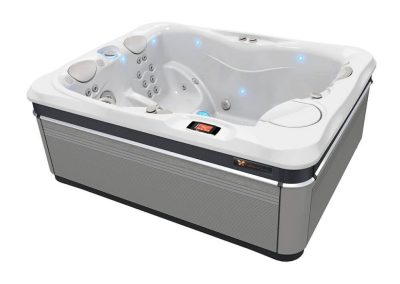

Ravello
3-person hot tub to provide the transformation you crave. The Ravello delivers the ultimate soaking experience with two powerful ReliaFlo pumps, 39 perfectly positioned jets and the UltraMassage™ lounge that soothes muscles from head to toe.
-
Seating Capacity3 Adults
-
Dimensions213 x 168 x 84 cm
-
Jet Count39 Total Jets
Ravello Style Selector
Click on cabinet and shell colours below to view combinations
Hot Tub Shell Colours
Arctic White
Midnight Canyon

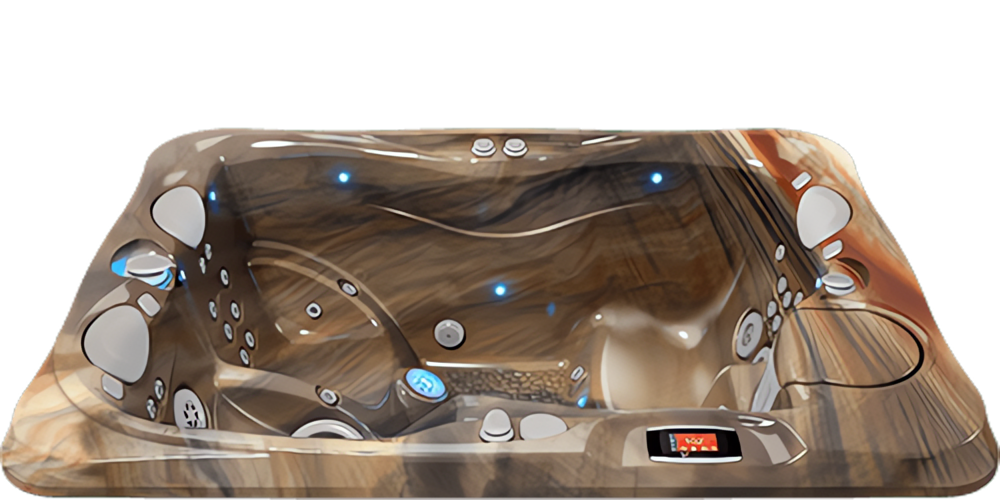

Tuscan Sun
White Pearl
Ecotech™ Cabinet Colours

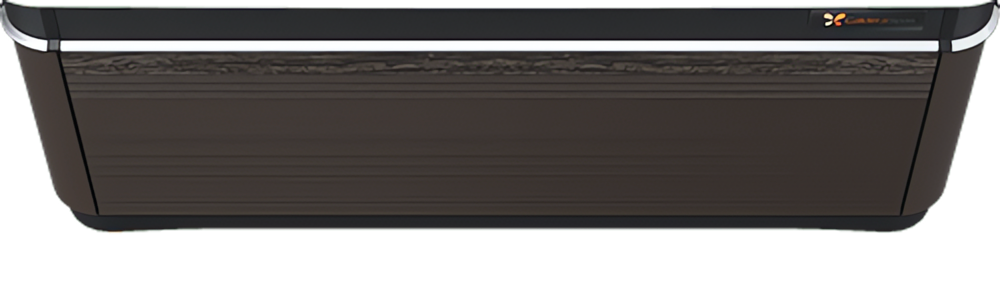

Java

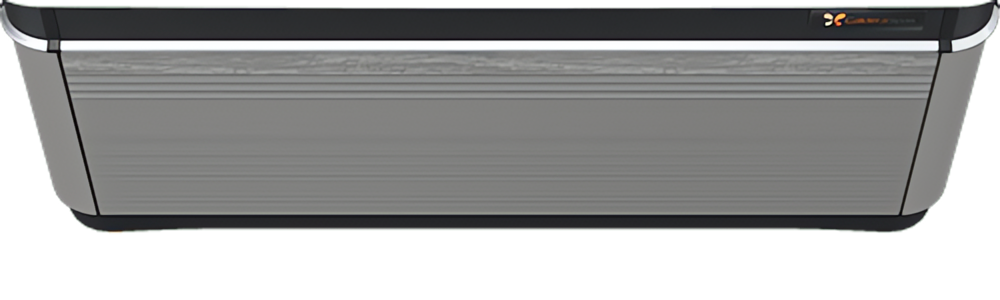

Ash

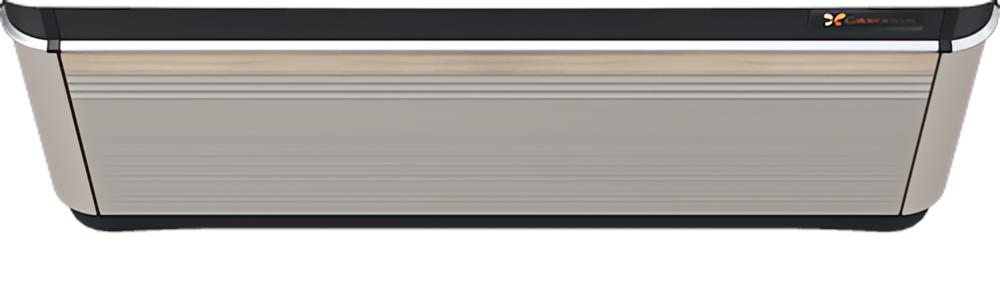

Parchment

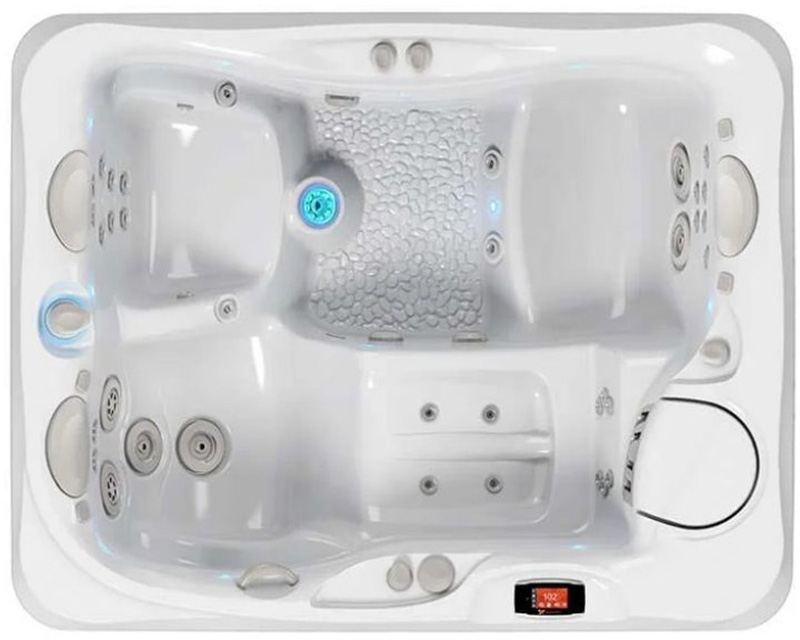

RavelloTM Jet Systems
Circulate through three stations in the Ravello that target muscles in your neck, back, hips, wrists, calves and feet.
Initial Blank

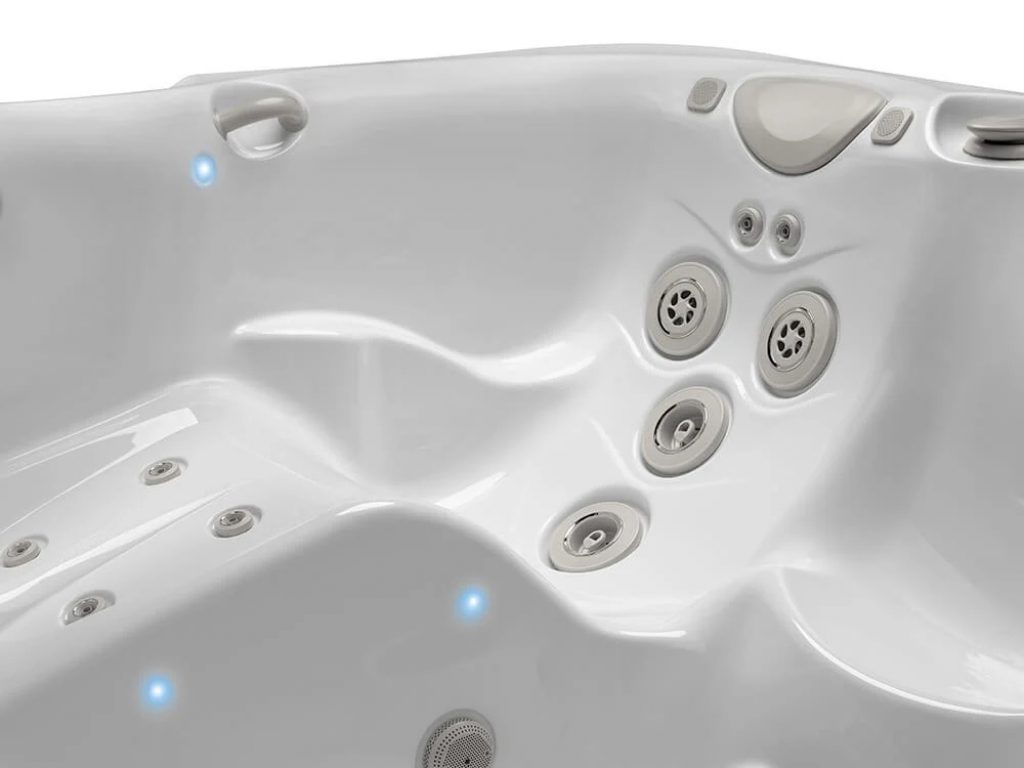

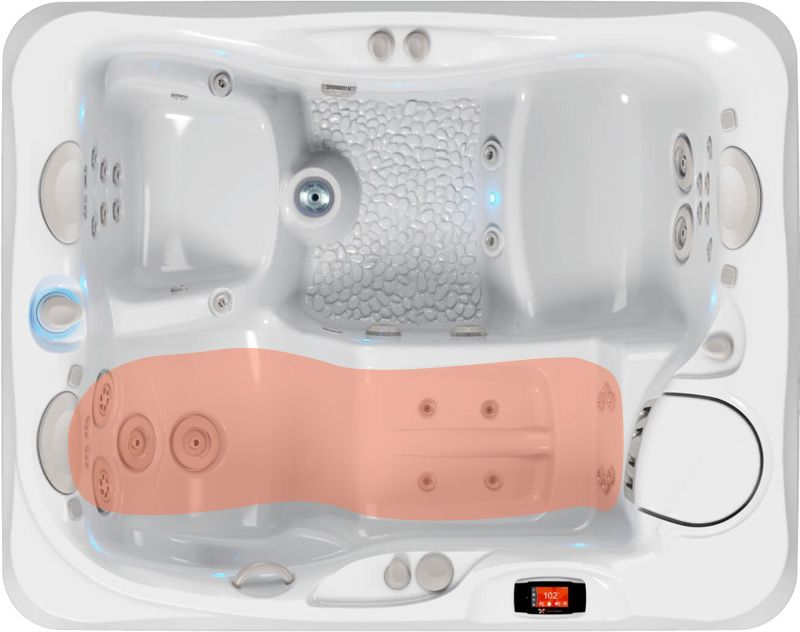

1. UltraMassage

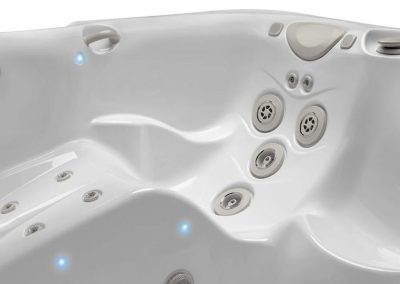

The UltraMassage Lounge targets your neck, shoulders, full back and calves, while the Sole Soothers jet clusters stimulate and revive the muscles in your feet.
2. EcstaSeat
The UltraMassage Lounge targets your neck, shoulders, full back and calves, while the Sole Soothers jet clusters stimulate and revive the muscles in your feet.

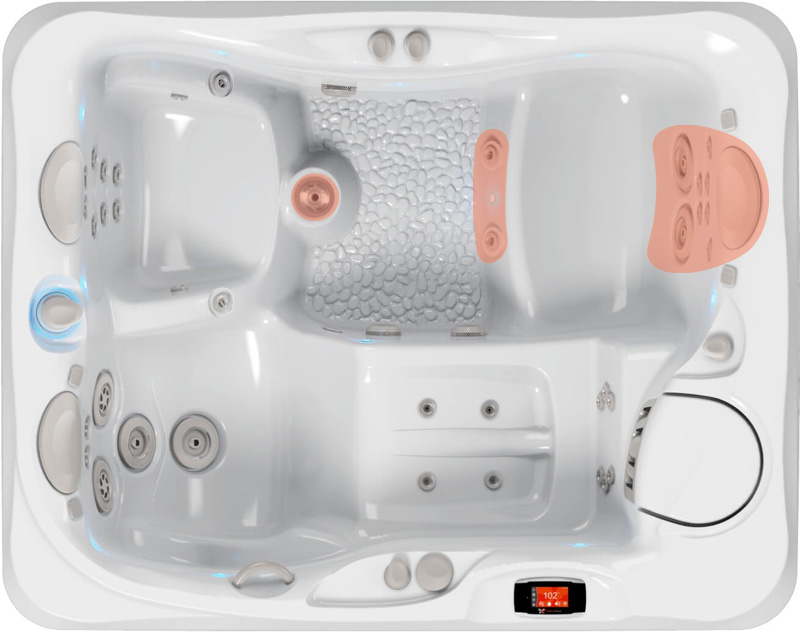

3. Lumbarssage Seat
A unique jet configuration relieves tension and pain in your back’s lumbar region, with calf jets to work the muscles in the lower leg.
4. Euphoria Jet
A deep, penetrating massage to thighs, knees, calves and feet.
Hot Tub Circuit Therapy
Your Massage Your Way.
Circulate through three stations in the Ravello that target muscles in your neck, back, hips, wrists, calves and feet.
Utopia Features

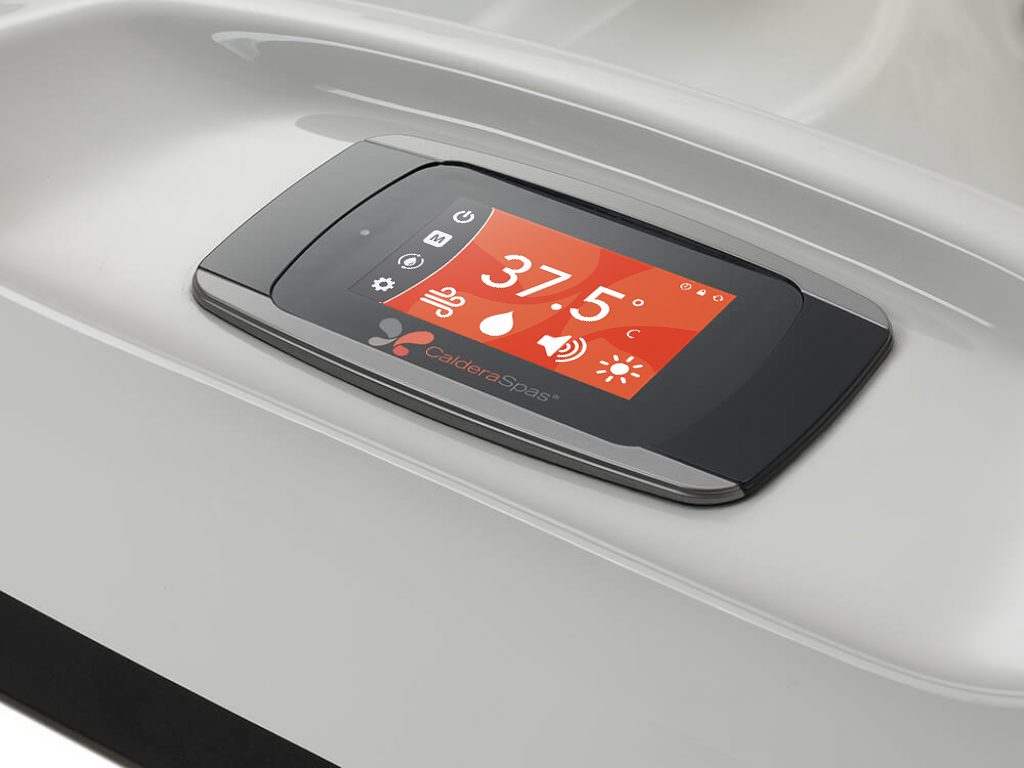

TOUCHSCREEN CONTROL
Adjust your water temperature, jets, and lighting with ease.
FRESHWATER® SALT SYSTEM
Longer lasting, natural-feeling water that won’t irritate eyes or dry out skin.

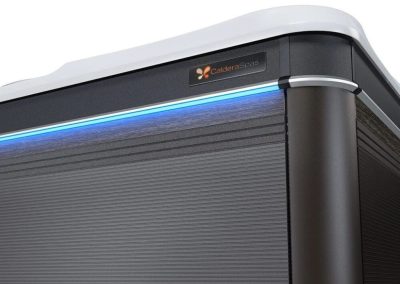

EcoTech® CABINET
Strength meets style with the EcoTech™ Plus cabinet. Available in three contemporary colours.
Ravello Specifications
-
Seating Capacity3 Adults
-

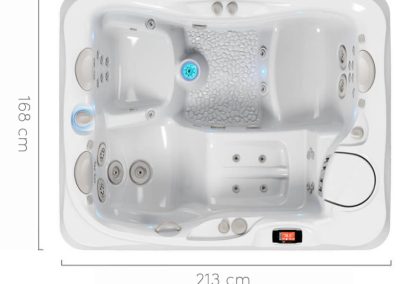

Dimensions213cm x 168cm x 84cm
-
Water Capacity875 liters
-
Weight (dry)365 kg
-
Weight (filled)1,480 kg
-
Jet Count39 Total Jets
-
Jets1 Euphoria™ jet, 2 OrbiSsage™ jets, 4 VersaSsage™ jets, 2 Euro-Pulse™ jets, 30 Euro Directional jets
-
Water Care SystemsFreshWater® Salt System Ready
-
Shell ColoursArctic White, White Pearl, Platinum, Tuscan Sun, or Midnight Canyon
-
Cabinet & step coloursJava, Ash, Parchment
-
Cabinet typeEcoTech™ Plus Cabinet
-
Step typeUtopia™ Series
-
Cover coloursChocolate, Slate, or Taupe
-
Cover lifterProLift™ III, or ProLift™ II
-
Bottom sealABS Base Pan
-

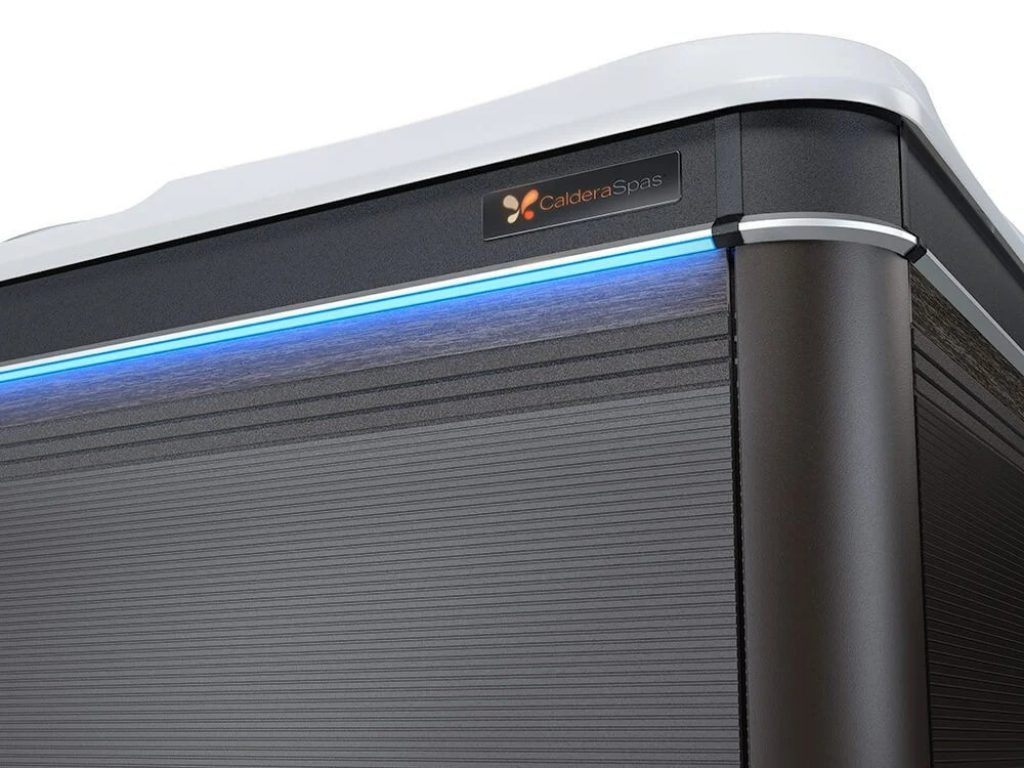

LightingSpaGlo™ Multi-zone LED Lighting with 7 Points-of-Interior Lights & Exterior LED Light Bar
-
BrandingDiagnostic Logo Light
-
Jet pumps2 ReliaFlo™ Pumps; 1 Dual-Speed 2.5HP (5.2 BHP) & 1 Single-Speed 2.5HP (5.2 BHP)
-
Control systemAdvent™ LCD Touchscreen
-
Circulation pumpEnergyPro™ Circulation Pump
-
Heater outputEnergyPro™ Titanium Heater (3,000 Watts)
-
Filter size7 m² filter
-
Electrical
requirements230V / 16 amp + 25 amp -
Entertainment
Options56 cm HD Wireless Monitor -
Music SystemWireless Audio System with Bluetooth®Technology
-
Water FeatureN/A
Hot Tub Accessories
COVERS
Each hot tub comes equipped with a custom-built cover, made to the exact measurements of your spa. This ensures a tight seal for optimum energy efficiency. The durable, marine-grade vinyl cover includes child safety locks and is UL listed in compliance with ASTM standards.
Cover Lifters
A hot tub cover lifter is an essential spa accessory that protects your spa, the cover, and your investment. Designed to allow one person to effortlessly remove and replace the cover, a lifter makes it easy for you to be in your spa in seconds.
STEPS
We offer color-matched hot tub steps to help you enter and exit your spa with ease.
